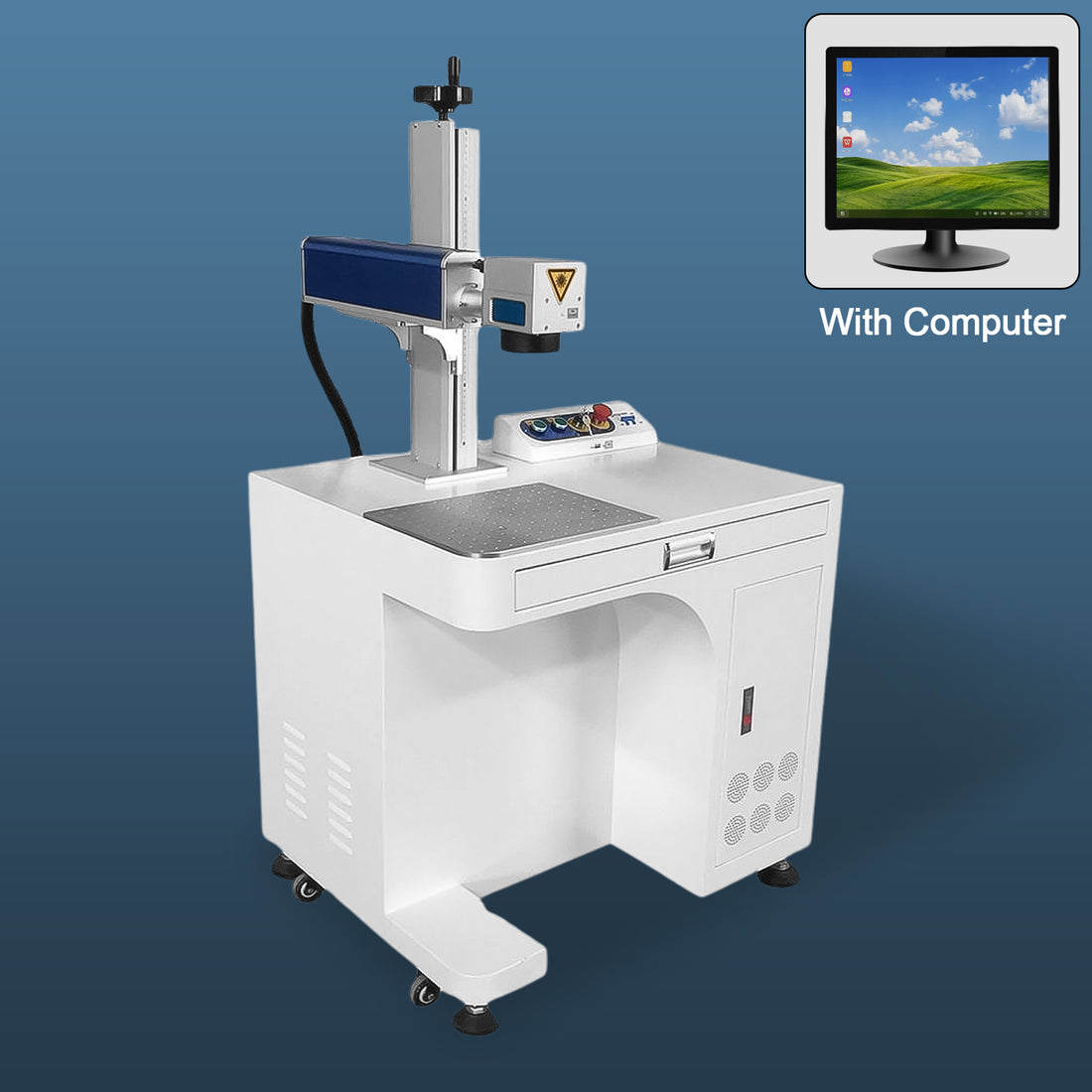

Laser Engraving Machine – SVL 30W High Precision Industrial System

The laser engraving machine by SVL offers 30W high-precision performance ideal for industrial engraving and etching across multiple materials including metals, plastics, and electronics. Designed with a 1064 nm laser wavelength, this system enables fast and accurate marking for product branding, serial numbers, barcodes, and detailed designs on automotive parts, medical instruments, and jewelry.

Key features

• Laser power: 30W with 1064 nm wavelength for versatile marking
• Maximum linear speed of 7000 mm/s for efficient operation
• Precise marking size options: 70mm, 110*110mm, 175*175mm, 200mm, 300*300mm
• Minimum font height of 0.2 mm and line width of 0.01 mm for fine detail
• Repetition accuracy of ±0.003 mm ensures consistent engraving
• Supports common file formats like AI, PLT, PCX, DXF, BMP for design compatibility
• Codes supported: 2D Matrix and Linear Barcode for labeling needs
• Air-cooled for optimal work environment temperatures between 10-40°C with 10-90% humidity

Materials & care

This laser engraving machine is built with durable components suitable for industrial use in electrical, telecommunication, automotive, medical, and aerospace applications. Air-cooled design requires minimal maintenance but should be operated within specified temperature and humidity ranges for longevity.

FAQ

Q1: What materials can the SVL 30W Laser Machine engrave?

A: It is capable of engraving metals, plastics, electronic components, automotive parts, medical instruments, and jewelry.

Q2: What file formats does the machine support?

A: The machine supports AI, PLT, PCX, DXF, and BMP file formats for design input.

Q3: How precise is the engraving?

A: It offers a repetition accuracy of ±0.003 mm, minimum font height of 0.2 mm, and minimum line width of 0.01 mm.

Q4: What are the operating conditions?

A: Designed for use in environments with temperatures from 10-40°C and humidity levels from 10% to 90%. It uses air cooling for heat dissipation.

Q5: Is it suitable for barcode and QR code marking?

A: Yes, it supports marking 2D Matrix and Linear Barcodes, ideal for packaging and product labeling.
